Overview

External webhooks let Leen call you. Register an HTTPS endpoint, subscribe it to the events you care about, and Leen POSTs a JSON envelope to that endpoint whenever one of them happens. The usual reason to use them is to stop polling. Instead of asking “has this connection synced yet?” on a timer, you receive connection.sync.succeeded and pull the new data once, when there actually is new data.
This page is about external webhooks - Leen calling your service. That is a different feature from Third-Party Webhooks, where a vendor such as JIRA calls Leen to push data in. The two do not interact.

​
Events

The Add endpoint dialog in the portal lists every event with its description, and is always current - check there rather than relying on the table above.

​
Registering an endpoint

Webhook endpoints are managed from the Leen portal, under Settings → Webhooks.
1

Open Settings > Webhooks

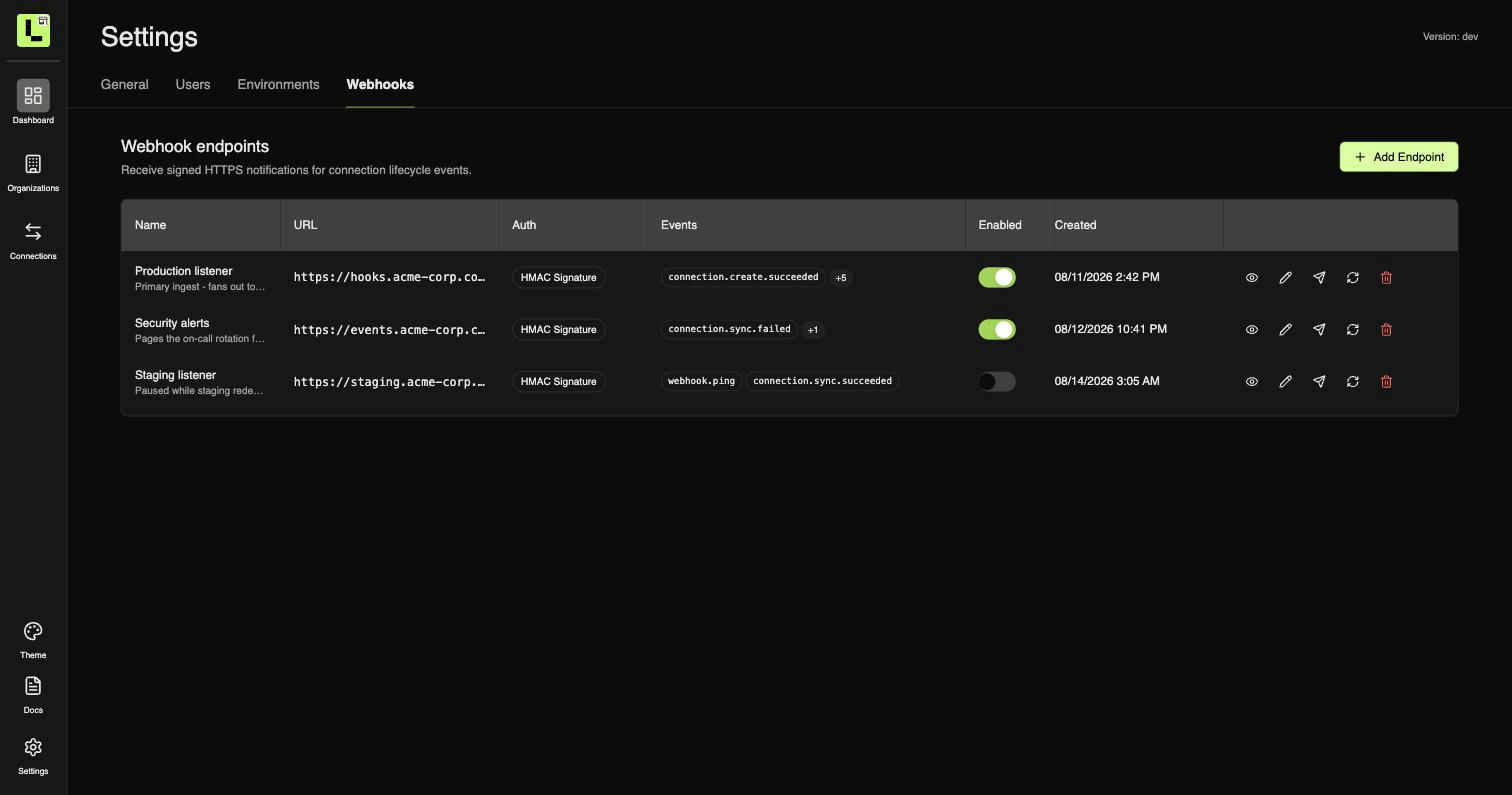

Each row is one endpoint: where it points, which events it receives, and whether it is currently enabled.The Webhooks tab in Leen settings, listing registered endpoints with their URL, auth type, subscribed events, and enabled state
2

Add an endpoint

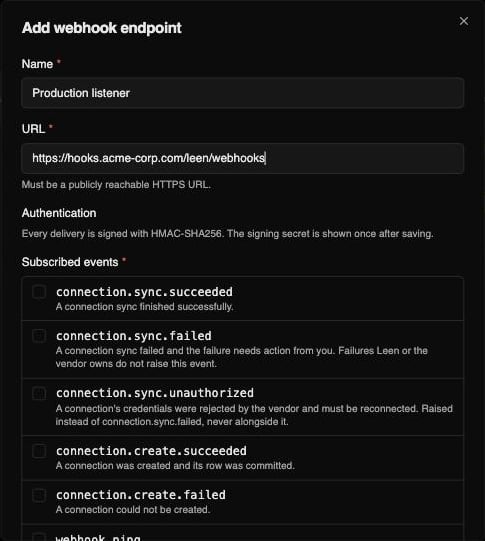

Click Add Endpoint, then give it a name and an HTTPS URL and tick the events you want. Every subscribable event is listed with a description of exactly when it fires.The Add webhook endpoint dialog: name and URL fields, a note that deliveries are signed with HMAC-SHA256, and the list of subscribable events with descriptionsThere is no authentication to choose: every delivery is signed with HMAC-SHA256.
3

Store the signing secret

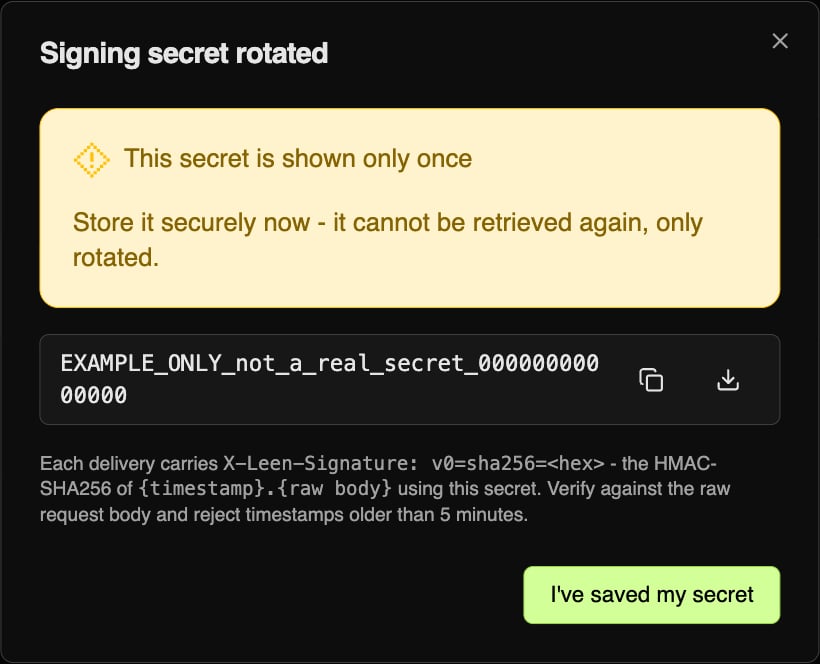

Leen generates a signing secret and shows it exactly once, on save.The signing secret dialog, warning that the secret is shown only once and cannot be retrieved again, only rotated
Copy it before you close this dialog. The secret is never displayed again and there is no endpoint that returns it. If you lose it, your only option is Rotate secret, which issues a new one and invalidates the old.
4

Send a test event and check the result

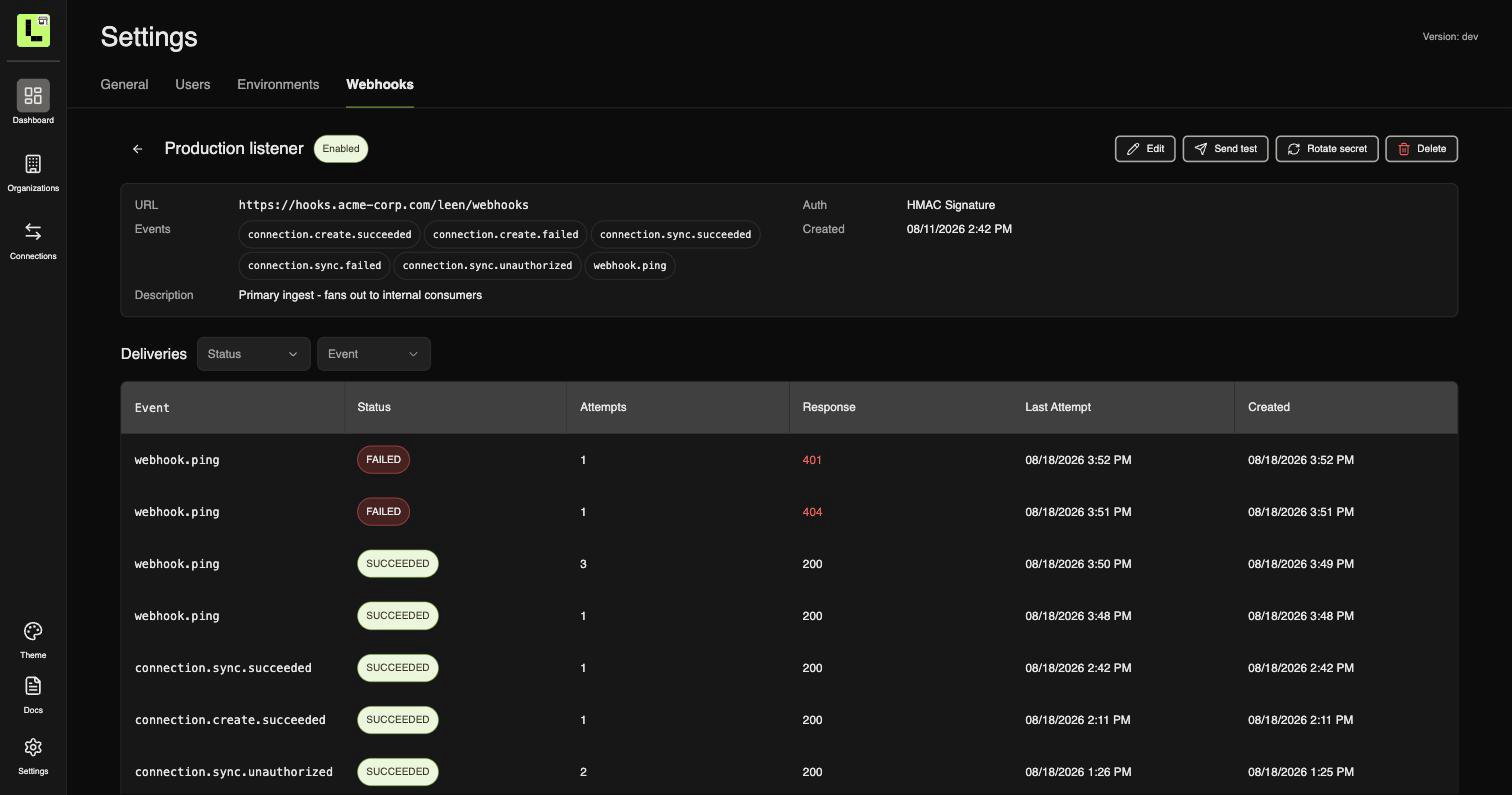

Send test queues a webhook.ping to that endpoint alone - the other endpoints subscribed to webhook.ping do not receive it. The endpoint must be enabled and subscribed to webhook.ping, or nothing is sent.Delivery is asynchronous, so open the endpoint to watch the outcome. The Deliveries table records every attempt with its status, attempt count, and the HTTP code your endpoint returned - a failed signature check shows up here as a 401 without you adding any logging.An endpoint's detail view: URL, subscribed events and description, above a Deliveries table listing each attempt with status, attempt count, response code and timestampsFilter by status or event type to find a specific failure. The 401 and 404 rows above are permanent rejections - neither is retried, so both stop at a single attempt. The row with 3 attempts is a 500 that was retried and then accepted.

​
URL requirements

  • HTTPS only. Plain HTTP is rejected.
  • Publicly resolvable. URLs that resolve to a private, loopback, link-local, reserved, multicast, or unspecified address are rejected. This is an SSRF guard.
  • Re-checked before every delivery, not just at registration - a hostname that resolves publicly today but is later re-pointed at an internal address stops receiving deliveries.
  • 2048 characters maximum.

​
What Leen sends

A single JSON object, POSTed as application/json:
id, type, created_at, and environment_id are on every event. connection_id is on every connection.* event - it is at the root, not inside data, so you can route on it without knowing the event’s payload shape. It is null in exactly one case: a connection.create.failed raised before the connection existed at all. data is where the event-specific fields live. Every connection.* event carries the same three: Keys are serialized in alphabetical order, and the payload may grow new keys - so parse it as JSON, and ignore fields you do not recognize rather than rejecting them.

​
Error codes

error is a fixed set. The text in description may be reworded at any time; these codes will not be.

​
Headers

​
Delivery, retries, and duplicates

A delivery counts as successful on any 2xx. Return one as soon as you have durably accepted the event - do your real work afterwards, not before, or slow processing will read as a failure.
  • Timeout: 15 seconds per attempt.
  • Retried: 5xx, plus 408 and 429.
  • Not retried: any other 4xx. A 400 or 401 is treated as a permanent rejection and the delivery is marked failed immediately.
  • 5 attempts with exponential backoff - roughly 10s, 30s, 90s, then 4.5m after the first, so the last attempt lands about 7 minutes in.
Design for duplicates. X-Leen-Event-Id is generated once per event and reused across every retry and across every endpoint the event fans out to. It is the deduplication key - store it and ignore an id you have already processed. Delivery is at-least-once, never exactly-once.

​
Authentication

Every delivery is signed with HMAC-SHA256. There is no unauthenticated mode and nothing to choose at registration - Leen signs each request with a secret only the two of you know, so you can prove the request really came from Leen and that nobody altered it in transit. The signature is hex HMAC-SHA256 over {timestamp}.{body}, sent as:
To verify: split the header on =, confirm the version and algorithm are v0 and sha256, recompute the digest over the raw request body, and compare in constant time. Then bound the age of X-Leen-Timestamp - 5 minutes is the recommended tolerance - which is what stops someone replaying a request they captured earlier.
Sign the raw bytes you received. Parsing the JSON and re-serializing it produces different bytes and therefore a different digest, and your verification will fail for reasons that are very hard to see. In most frameworks this means explicitly asking for the raw body rather than the parsed one.
Working code for this is on the Receiver Example page.

​
Rotating the signing secret

Rotate secret on the endpoint’s detail page issues a new secret and shows it once, under the same rule as the original. Deliveries already in flight are signed with whichever secret is current at the moment the attempt is made, so a rotation can land between the original attempt and its retry. To rotate without dropping events, accept either secret for a few minutes, then drop the old one.

​
Managing endpoints

Each row on Settings → Webhooks carries the actions for that endpoint: Turning an endpoint off stops deliveries without losing its configuration or its secret, which is what you want during your own deploys - preferable to deleting and re-adding, since re-adding issues a new secret.

​
Troubleshooting

Almost always re-serialized JSON. Verify against the raw request body, before any parsing. Confirm you are using the secret from this endpoint, and that it has not been rotated since.
Send test silently sends nothing unless the endpoint is enabled and subscribed to webhook.ping. Confirm both, then check the Deliveries table - a failed attempt records your status code and response body.
The URL is re-validated before every attempt. If DNS for the host now resolves to a private or non-routable address, deliveries are refused by design. Also check the endpoint has not been disabled.
Expected. Deduplicate on X-Leen-Event-Id, which is stable across retries and across endpoints.
Two by-design cases: failures Leen or the vendor owns raise nothing at all, and expired credentials raise connection.sync.unauthorized rather than connection.sync.failed. Subscribe to the unauthorized event.
